Modular/Compact Foot Set
Modular/Compact Foot Set The LCP Compact Foot Set is indicated for phalangeal, metatarsal, tarsal, extra- and intraarticular calcaneus fractures as well as osteotomies and arthrodesis in the foot.
With these additions, the LCP Compact Foot Set now offers a wide range of anatomical precontoured and adaptable plates for trauma and orthopedics in three dimensions (2.0, 2.4, and 2.7mm). The low profile design and the completely buried screw heads make the Set soft tissue friendly.
All plates of the Compact Foot Set are now available as Locking Compression Plates (LCP) with the advantages of reduced primary and secondary loss of reduction, reduced pull-out of screws, less periosteal compression, better hold in osteoporotic bone, more stable fixation, and bridging of fragments. All plates are available in titanium and stainless steel.

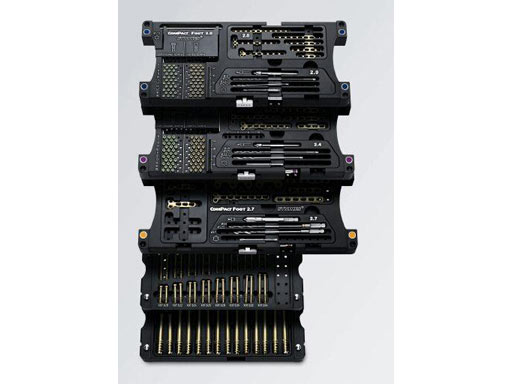

The LCP Compact Foot Set comes in a modular structure. Separate Vario cases for forefoot and hindfoot surgery are offered. Color-coded instruments and modules enable easy identification in the OR.

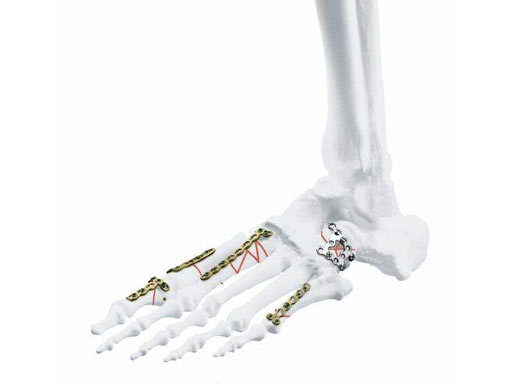

Fig 1 LCP Foot Plates

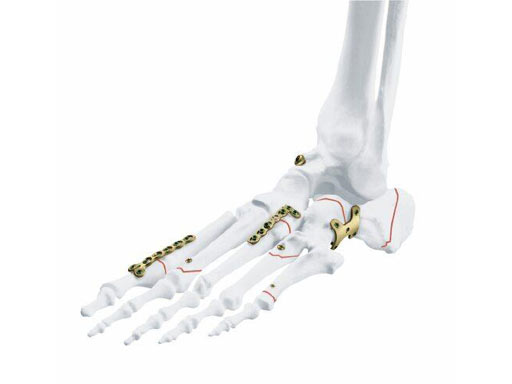

Fig 2 LCP Foot Plates LCP Plate 2.0 and 2.4, straight, 48 holes, TiCP
These plates correspond to the respective former LC-DC plates, thus are intended for the same indications, including the new features of the combi-hole/locked screws.
LCP Plate 2.0 and 2.4, straight, 48 holes, TiCP LCP Plate 2.7, straight, 412 holes, TiCP
Particularly for metatarsal shaft fractures and correcting osteotomies of the first ray.
LCP Plate 2.7, straight, 412 holes, TiCP LCP Condylar Plate 2.7, TiCP
Metatarsal fracture fixation especially in the metaphyseal zone and close to a joint.

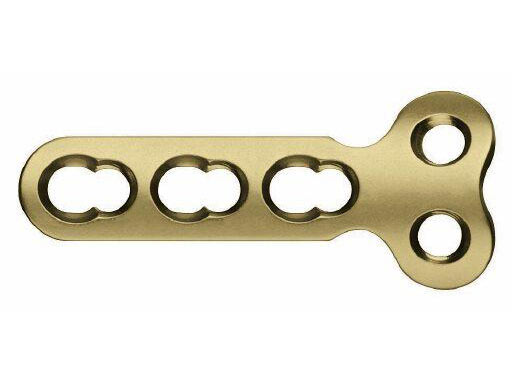

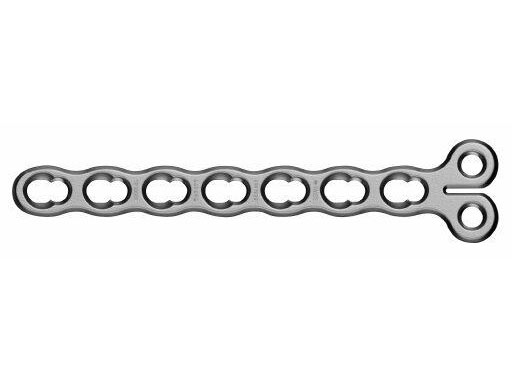

LCP Condylar Plate 2.7, TiCP LCP T-Plate 2.7, 3 & 4 holes, TiCP
Particularly for medial fusions in the tarso-metatarsal area.

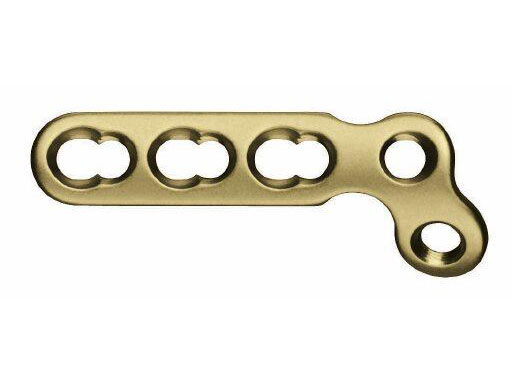

LCP T-Plate 2.7, 3 & 4 holes, TiCP LCP L-Plate, oblique, 2.7, right and left versions, 3 & 4 holes, TiCP
For fracture and fusion fixation, especially the proximal part of the fifth ray.

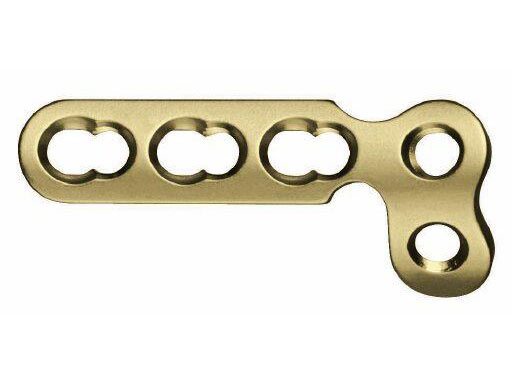

LCP L-Plate, oblique, 2.7, right and left versions, 3 & 4 holes, TiCP LCP L-Plate, 2.7, right and left version, 3 holes, TiCP
For proximal fracture fixation of the fourth/fifth ray or fusions to the cuboid.

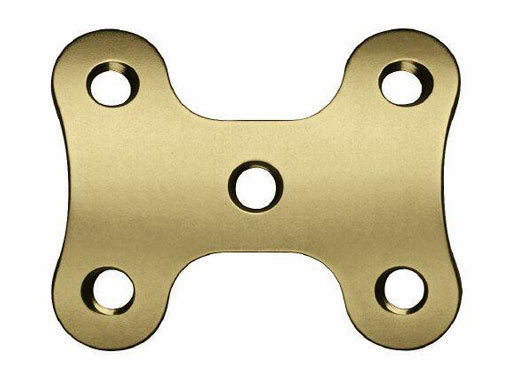

LCP L-Plate, 2.7, right and left version, 3 holes, TiCP Locking H-Plate, 2.7, 5 & 8 holes, TiCP
For fixation of correcting osteotomies of the calcaneus (eg, Evans osteotomy). Calcaneal fracture fixation of the medial and occasionally lateral wall.
Fig 1 Locking H-Plate, 2.7, 5 holes, TiCP

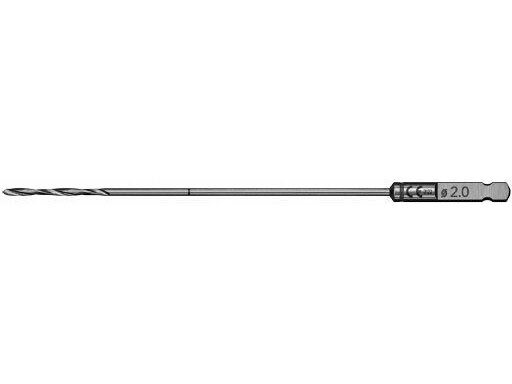

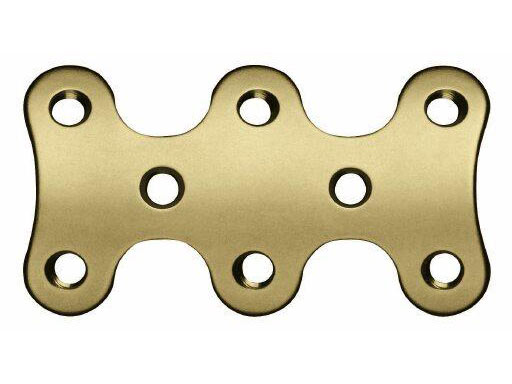

Fig 2 Locking H-Plate, 2.7, 8 holes, TiCP Drill Bit, with measuring scale, for Mini Quick Coupling, 2-flut, SS
The Drill Bit incorporates a measuring scale for easy determination of the screw lengths.

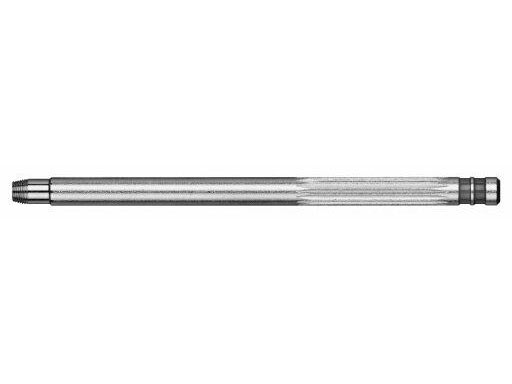

Drill Bit, with measuring scale, for Mini Quick Coupling, 2-flut, SS Bending Pin for LCP Plates 2.7
A Bending Pin enables bending of the threaded round holes of the LCP Plates 2.7.
Bending Pin for LCP Plates 2.7
