Calcaneal Locking Plate

Back to search

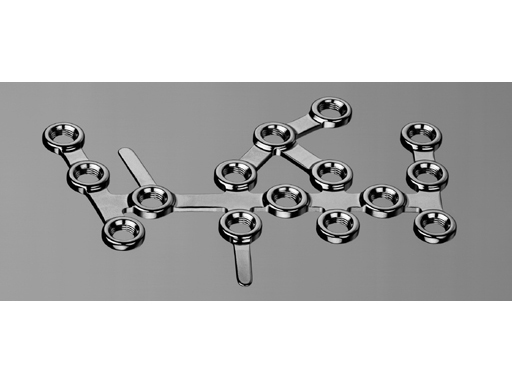

Calcaneal Locking Plate

Instruments
Clinical Cases
Disclaimer

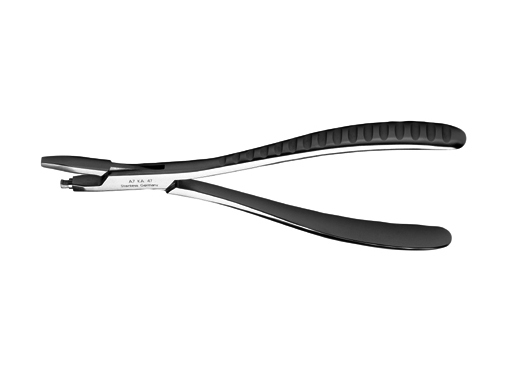

The Tab Bending Pliers are used to bend the two taps located on the Calcaneal Locking Plates. The surgeons now have the ability to safely contour the tabs of the plate in-situ for better anatomical fit.

Tab Bender Pliers

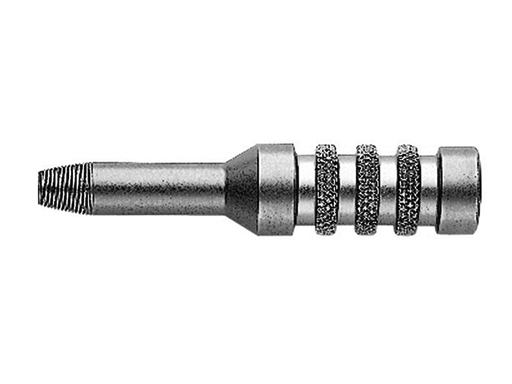

2.8 mm Threaded Drill Guide

Guides a 2.8 mm drill bit perpendicular to the plate to ensure proper mating of the 3.5 mm Locking Screw and plate hole threads.

2.8 mm Threaded Drill Guide

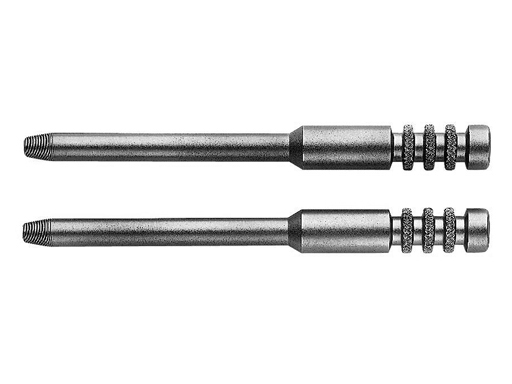

Threaded Plate Holders

Aids to position the plate to the bone and may also be used for in-situ bending to achieve a better plate fit.

Threaded Plate Holders

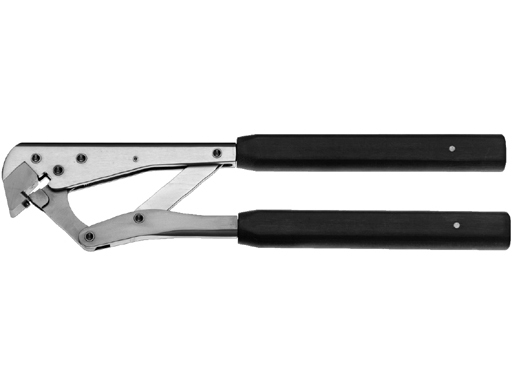

Calcaneal Locking Plate Cutter

Facilitates precise hole/tab removal without creating upward facing burrs.

Calcaneal Locking Plate Cutter

First clinical use (January 4, 2000, Dresden) of the new interlocking calcaneal plate in a B2 fracture of the calcaneus

The lateral view and the Brodns view show the deep impaction of the posterior facet (see Fig a-b).

The axial and coronal cut of the CT scan show the severe damage to the calcaneo-cuboidal and subtalar joint classified according to the new AO-Classification as 81.2 B2 [ie, (1.3.3)]. 81.2 = calcaneus, B2 = intraarticular fracture of two joints involved, d = posterior facet, h = cuboidal facet, 1.3.3 = bony lesion, multifragmentary, severely distocated (see Fig c-d).

Intraoperative situation after anatomical reduction and fixation with the interlocking plate. 1 = one of the four 2.0 mm K-wires, which are inserted in the talus and cuboid keeping the full thickness flap upwards for optimal exposure. 2 = tab bowed close to the bone in the calcaneal neck area to keep the ante (see Fig e-g).

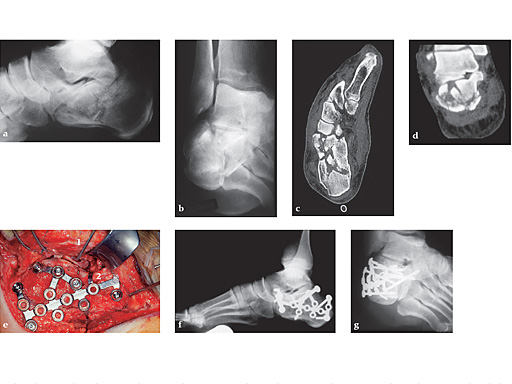

Fig a-g X-rays and pictures
