Modular Sternal Cable System

Please note that in 2011, this product has been superseded by the Sternal Zipfix System.

With a minimum of 345,000, in the US alone, annually performed surgical procedures that involve splitting the sternum to enter the thoracic cavity and gain access to the heart and other key organs, the need for effective sternal closure poststernotomy is vital. For the last few decades, surgeons have relied on stainless steel wires as their preferred chosen method of sternal closure. Although the reported failure rate of this technique is low (25%), many patients still experience pain, clicking, and other problems associated with nonunions that go untreated. The sternum is a unique bone located in an environment of constant motion. The thoracic cavity is highly vascularized, but a common practice of open-heart procedures is to remove one of the key blood supplies to the sternum for the heart. The bone is mostly cancellous with a very thin cortical shell, and its quality is often compromised, as many heart patients have other serious comorbidities such as:

  • Chronic obstructive pulmonary disease (COPD)
  • Obesity
  • Diabetes
  • Previous steroid therapy
  • Osteoporosis

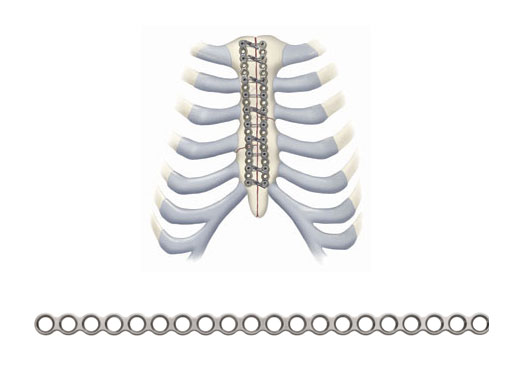

Problems with infection and failed closures have to be taken seriously, especially given the proximity to the heart. The need for an improved closure device has been recognized for many years and several products have attempted to solve this problem. For various reasons, none of these products have been able to obtain significant market share from the standard of care. The new Modular Sternal Cable System has been developed to address these needs. It consists of three basic implant components, which can be used alone or in combination, based on the surgeons preference and on patient condition.


Instruments

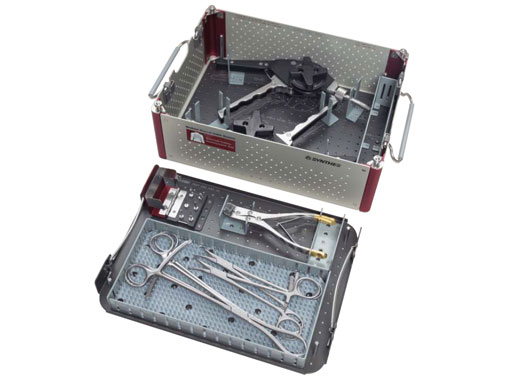

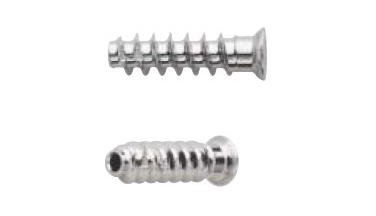

In addition to the implants in the set, a selection of instruments is offered, such as an instrument to tension, crimp, and cut the stainless steel cable. It is recommended to suture the cable directly through the sternum using the attached needle. Instrumentation to perforate the bone and facilitate cable passage when using cannulated screws is also available. Plate benders, plate cutters, depth gauges, screwdrivers and forceps are included in the system to facilitate installation of the implants. The screwdrivers have adjustable spade-bit tips that provide self-drilling functionality to the blunt-tip screws.

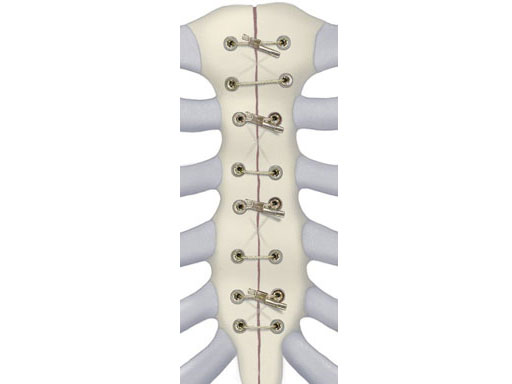

Closure of the sternum with cable.

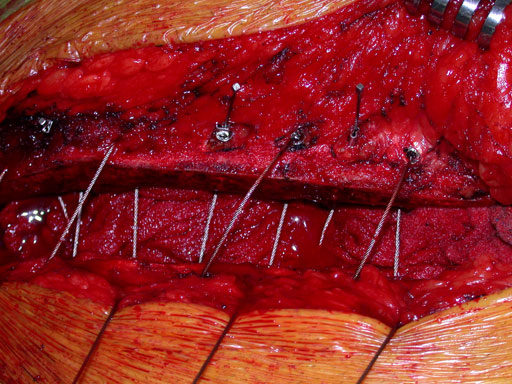

Case images provided by Dr J Huh, Baylor College of Medicine, Texas Medical Center, USA.
