Flexible Monobloc Reamers
Christopher Finkemeier, Mark Lee, Andrew Oppy, Martin Hessmann
In response to various clinical demands (cutting performance, usability), new Flexible Monobloc Reamers have been developed to ream an intramedullary bone canal in preparation for insertion of implants.
The new monobloc reamers are provided in reamer diameters from 8 mm to 18 mm in 0.5 mm increments and in reamer lengths of 480 and 620 mm. Each reamer has a one-piece design with a flexible shaft. Compared with modular reamers there is no need for intraoperative reamer head exchange. All reamers have a hybrid reamer head design that incorporates both front- and side-cutting features. The deeply fluted reamer heads function to reduce intramedullary pressure and increase the flow of bone chips and marrow. A wear indicator in the Graphic Case allows surgeons to understand the extent of the reamer deterioration.
With the new Flexible Monobloc Reamers, surgeons can choose simplicity and enhanced usability for the reaming procedure that has the potential to be challenging and time consuming when using a modular reamer systems.
During the design of Gerhard Küntscher's cloverleaf nail intended for the intramedullary internal fixation of femoral shaft fractures in the late 1930s, it became apparent that a device that is too large for the isthmus impeded insertion and resulted in jamming or iatrogenic fracture. To avoid such problems, Küntscher proposed reaming of the medullary cavity before nail insertion. He also suggested that this will enable use of a larger diameter implant, thereby providing better stability and a reduced risk of postoperative implant breakage.
Since the introduction of reaming, instruments used for the adoption of this pre-nailing procedure have evolved significantly. In response to various clinical demands specific to intramedullary reaming (cutting performance, usability), the Intramedullary Nailing Expert Group has developed the new Flexible Monobloc Reamers that are intended to ream an intramedullary bone canal (femur/tibia) in preparation for the insertion of implants.
The new monobloc reamers are provided in reamer diameters from 8 mm to 18 mm in 0.5 mm increments and in reamer lengths of 480 and 620 mm (Fig 1). Each reamer has a one-piece design with a flexible shaft manufactured from laser-cut stainless steel (Fig 2). Compared with modular reamers there is no need for intraoperative reamer head exchange, which improves usability and streamlines the workflow with the potential to reduce surgery time. All reamers have a hybrid reamer head design that incorporates both front- and side-cutting features (Fig 3). Consequently, surgeons can reduce the rate of reamer passes per procedure through having the freedom to initiate reaming with a larger reamer diameter compared with the SynReam system which contains only one diameter of reamer head (8.5 mm) with a front-cutting design.
The flexible shafts and deeply fluted reamer heads (Fig 3) function to reduce intramedullary pressure and increase the flow of bone chips and marrow during reaming, which is important to reduce the risk of intravasation of bone marrow or fat into the vascular system potentially leading to pulmonary dysfunction.
The smooth reamer head to shaft transition (Fig 3) eradicates the potential for interference with the distal end of the soft tissue protection sleeve during reamer retraction that was sometimes reported as an issue when using the SynReam reamers. The new reamers are supposed to be used with the new Ø 3 mm Advanced Nailing System reaming rod with Ø 3.8 mm ball tip (available in 950 and 1150 mm lengths), which is beneficial for reducing fractures and controlled reaming.

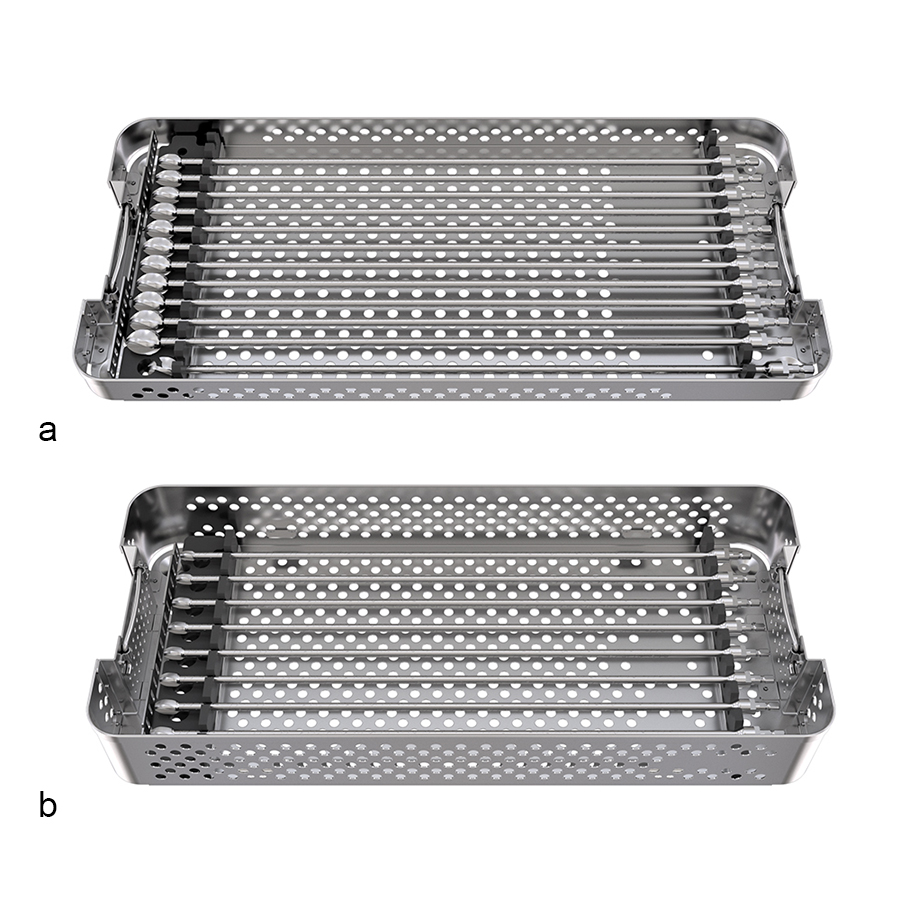

Fig 1a–b The flexible monobloc reamers are provided in an efficiency set (a) for the reamer diameters 8 to 14 mm (which can support about 90% of the clinical cases) and in an outlier set (b) for the reamer diameters 14.5 mm to 18 mm for the reamer. Both sets are available for the 480 and 620 mm reamer lengths. The outlier trays have an instrument tray above them, which can store a Reaming Rod Pusher and a Universal Chuck. It also has bracketing for 6 mm and 7 mm hand reamers, and a spare space for one reamer, as needed. The instrument tray is useful if only an outlier tray is being taken into the operating room for a particular case.

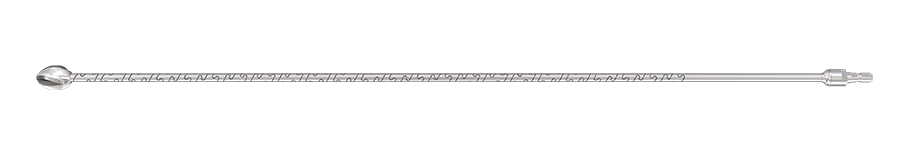

Fig 2 The single piece design eliminates the need for exchanging reamer heads that is required for modular reamers.

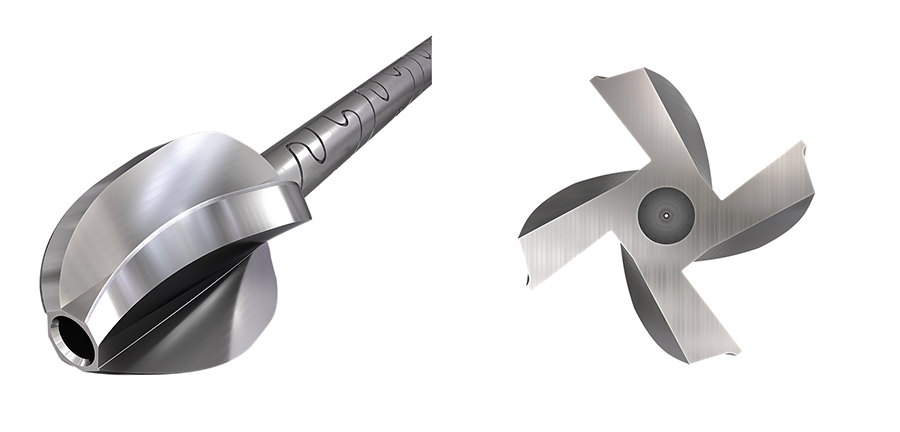

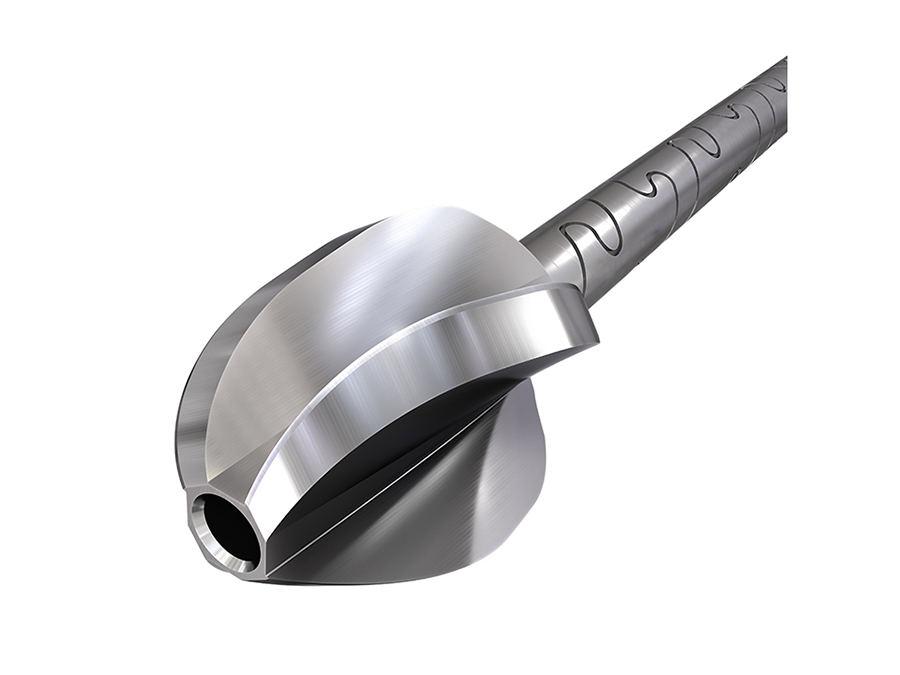

Fig 3 Acorn shape reamer head with deep flutes. The modified-trinkle (Hudson) connection of the new reamers eases the assembly to the power tool and thereby improves the overall usability (Fig 4).

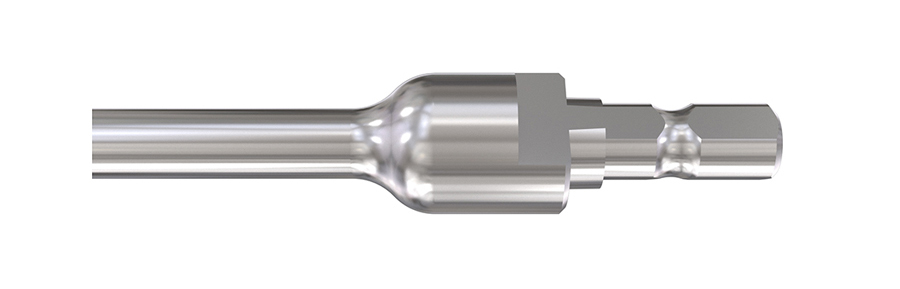

Fig 4 Modified-trinkle connection to facilitate assembly to the power tool. A wear indicator in the Graphic Case allows surgeons to understand the extent of reamer wear. This feature will indicate if the reamer is worn more or less than Ø 0.25 mm.
If the reamer head interferes with the hole the reamer head has worn less than Ø 0.25 mm of the initial diameter (Fig 5a).
If the reamer head passes through the hole the reamer head has worn at least Ø 0.25 mm of the initial diameter (Fig 5b).

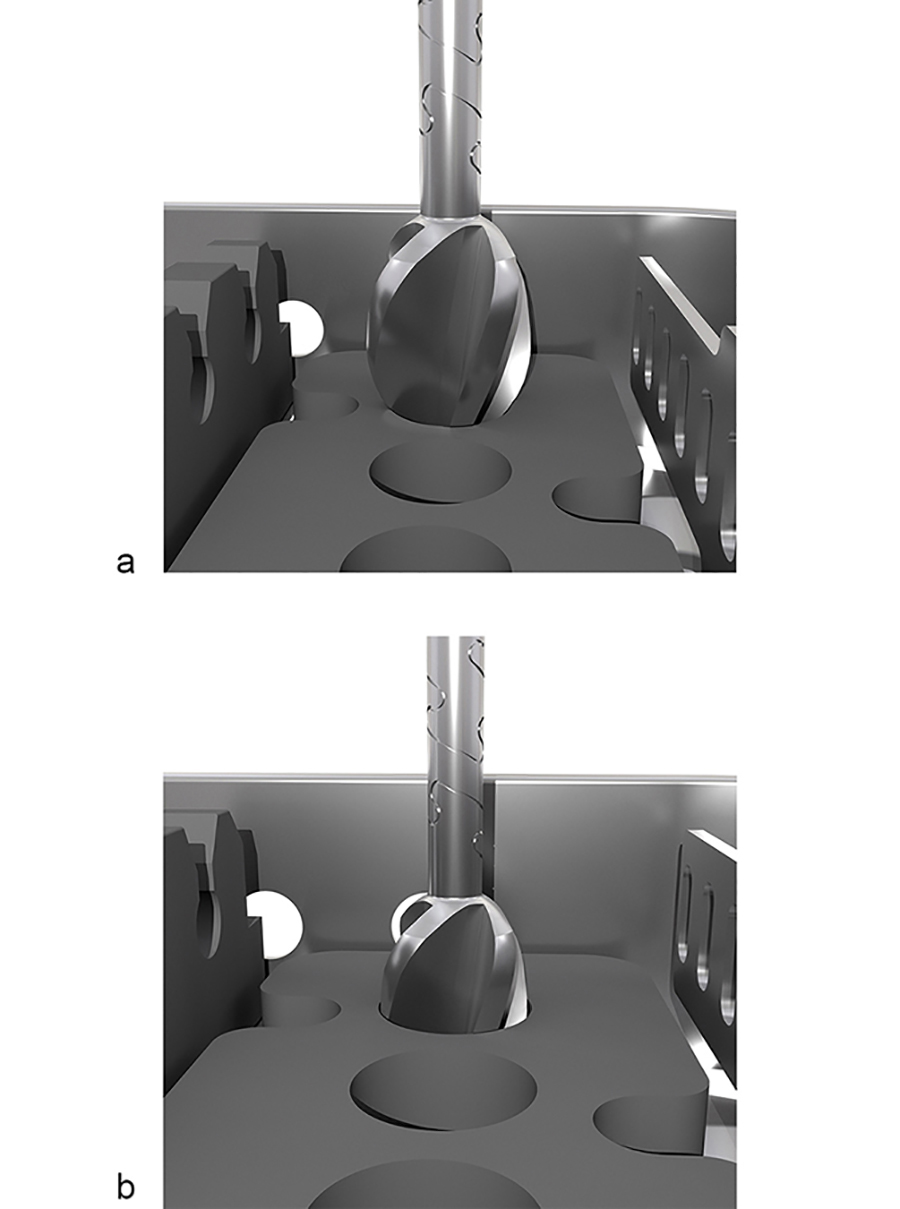

Fig 5a-b A wear indicator is incorporated into the trays to help identify worn reamers. Reamer which is not worn (a). Reamer which is worn (b). In addition to the new reamers, the following DePuy Synthes reaming systems continue to be available:
Monobloc Flexible Reamers — small:
- From sizes Ø 6 mm to 10.5 in 0.5 mm increments
- Flexible shaft of 385 mm
- Front-cutting
- Ø 2.5 mm reaming rod
Hand Reamers:
- Ø 6.0 mm, Ø 7.0 mm, Ø 8.0 mm
- 450 mm long
SynReam System:
- From sizes Ø 8.5 to 19 mm in 0.5 mm increments
- Flexible shaft of 470 mm (in the US system a 620 mm shaft is also available)
- Side-cutting, Ø 8.5 mm: front-cutting
- Ø 2.5 mm reaming rod
- Reamer heads from Ø 10 to 18 in 0.5 mm increments
- Drive shaft length: 520 mm
- Ø 2.5 mm reaming rod
- Front-cutting
