MAXFRAME AUTOSTRUT™
Theodor F. Slongo, J. Spence Reid

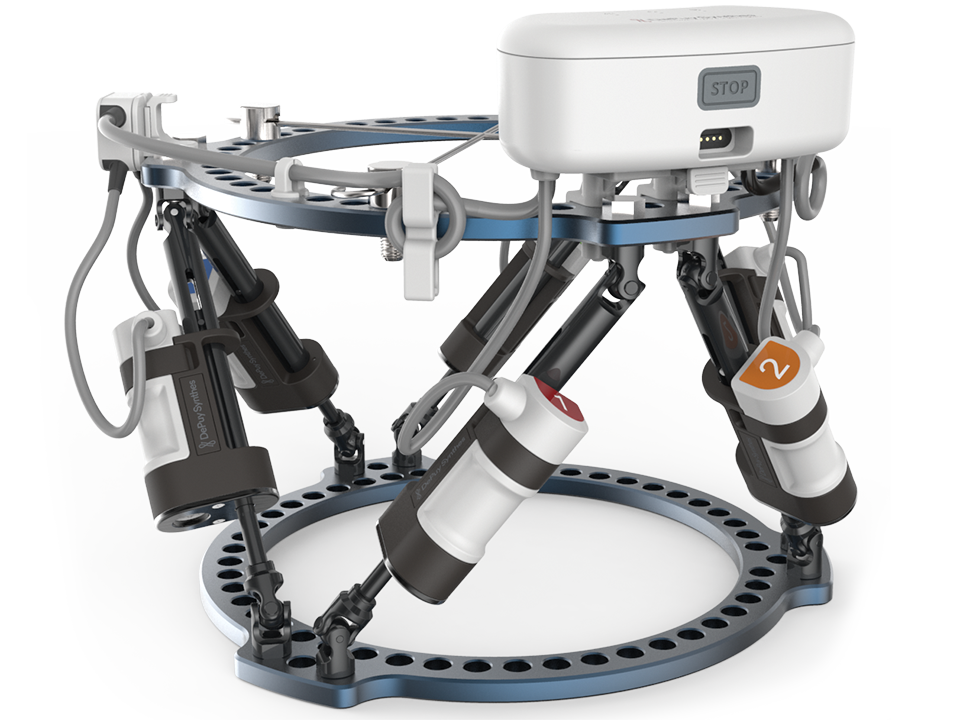

Fig 1: MAXFRAME AUTOSTRUT control system and 6 MAXFRAME AUTOSTRUT hexapod struts assembled on MAXFRAME rings. MAXFRAME AUTOSTRUT™ Multi-Axial Correction System is a first-of-its-kind fully automated hexapod ring-fixation system. It provides a solution to the drawbacks of hexapod external ring-fixation treatment by automating the strut adjustment process. Patients no longer need to manipulate the struts, leading to a superior experience throughout the treatment, and reducing the risk of negative clinical outcomes caused by unintended strut adjustments.
It further enables smaller, more frequent actuations, up to 20 times per day. This may be better for the surrounding soft tissue, reduce pain, and improve the quality of the bone regenerate vs. larger and less frequent strut adjustments.
The multiaxial correction system MAXFRAME™ has now firmly established itself as an integral part in the treatment of any bone deformity, be it posttraumatic, infectious, or congenital in origin. The implementation of new hardware components, such as the previously presented linear struts, have again increased the versatility and stability, and made the application simpler. The temporary use of the polyaxial struts is particularly helpful in the case of a strut change, as they guarantee high stability while performing a strut change and are easy to install (Fig 2).
An update was also carried out on the software side, seamlessly compatible with previously created treatment plans and allowing direct transfer to the new software. The current web-based user interface can be accessed on https://www.maxframe3dii.com.
The new software version addresses and integrates the innovative new hardware components MAXFRAME AUTOSTRUT. It enables full automation of strut adjustments through motorized struts and provides a solution to various drawbacks of a traditional hexapod external ring-fixation treatment.

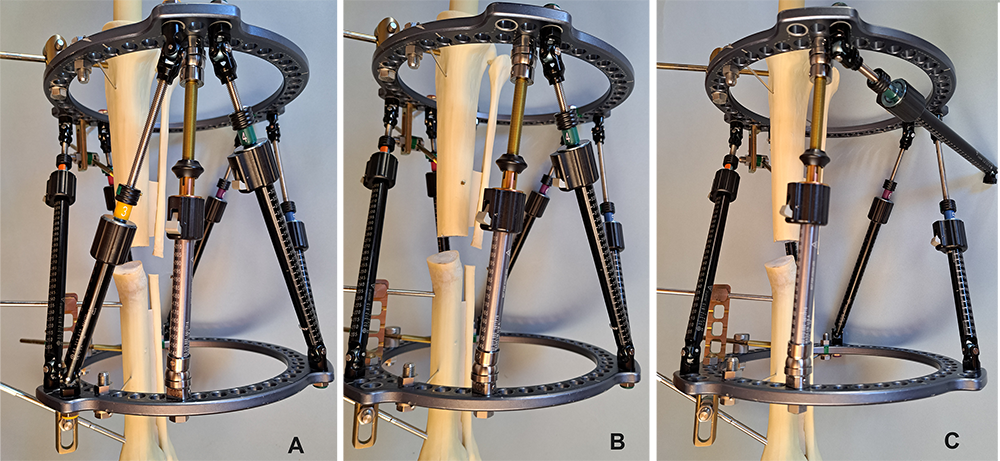

Fig 2: Polyaxial strut for planned strut change demonstrated on a bone model: Goal; changing strut 3 (yellow ID band) and strut 4 (green ID band). A) Polyaxial strut is mounted and locked between strut 3 and strut 4. B) Strut 3 is removed and frame is still stable. C) Strut 4 is also removed and even now, the frame is still stable because of the blocked cardan joints. MAXFRAME AUTOSTRUT allows more frequent actuations and higher distraction rates, which may improve callus formation. Simultaneously, it takes into consideration the surrounding soft tissue and nerves, which experience a gentler distraction process when using MAXFRAME AUTOSTRUT vs manually operated struts. Patient discomfort and pain may be also reduced using a larger number of adjustments per day with smaller actuation steps. Currently, up to 20 steps per day are possible. Closed nonunion treatment particularly benefits from this increase in cycles per day while at the same time not increasing demands on manipulations executed by the patient. The system operates completely autonomously and fully automated, not even requiring recharging throughout a treatment.
It is a preference for surgeons and patients not be concerned with strut adjustments, especially during the night. This is achieved with MAXFRAME AUTOSTRUT. Automated strut adjustments may further reduce the risk of negative clinical outcomes caused by unintended or wrong manipulation.
MAXFRAME AUTOSTRUT may additionally allow surgeons to evaluate the progressing stability during the bone-healing phase. Consequently, it is possible to better estimate the load-bearing capacity of the bone at a certain stage of treatment, and potentially allow an earlier removal of the hexapod frame.
The original MAXFRAME hexapod system with the existing software is fully compatible with MAXFRAME AUTOSTRUT.
Specific features and benefits in detail
MAXFRAME AUTOSTRUT System consists of both hardware and software components as follows:
- Hexapod Struts available in three sizes: short, medium, and long (Fig 3)
- Automated Hexapod Control System Kit. Control system consists of control unit with a wired connection to six motorized struts (Fig 4)
- Software allowing physicians to download the treatment plan to the device, chart patient progress and, if required, adjusting the treatment plan and schedule (Fig 5)
- Accessories

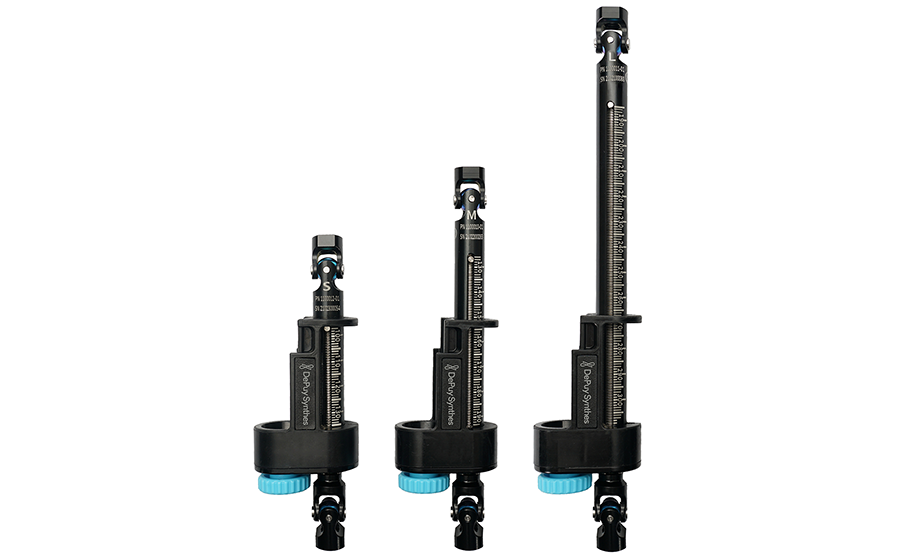

Fig 3: MAXFRAME AUTOSTRUT hexapod struts without motor; struts are attached to frame rings in the operating room or by pre-assembling the frame preoperatively.

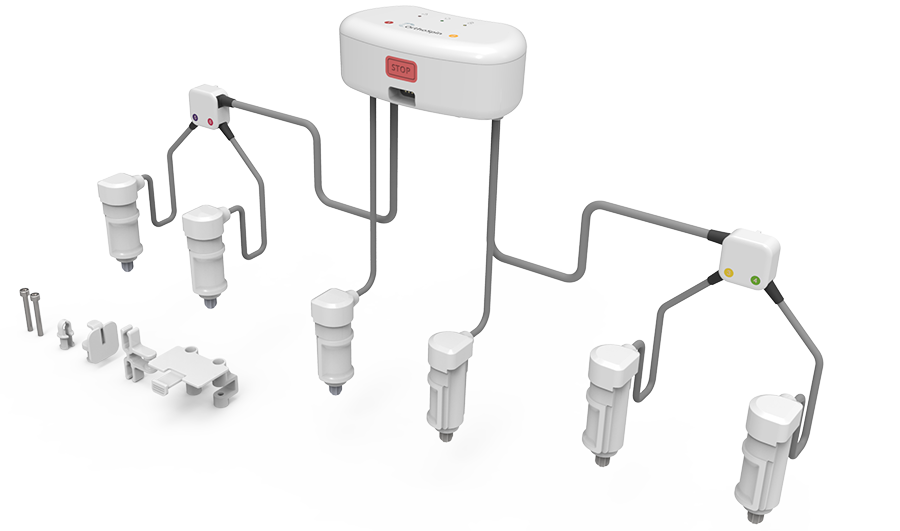

Fig 4: Control system elements (transducer/interface and motors).

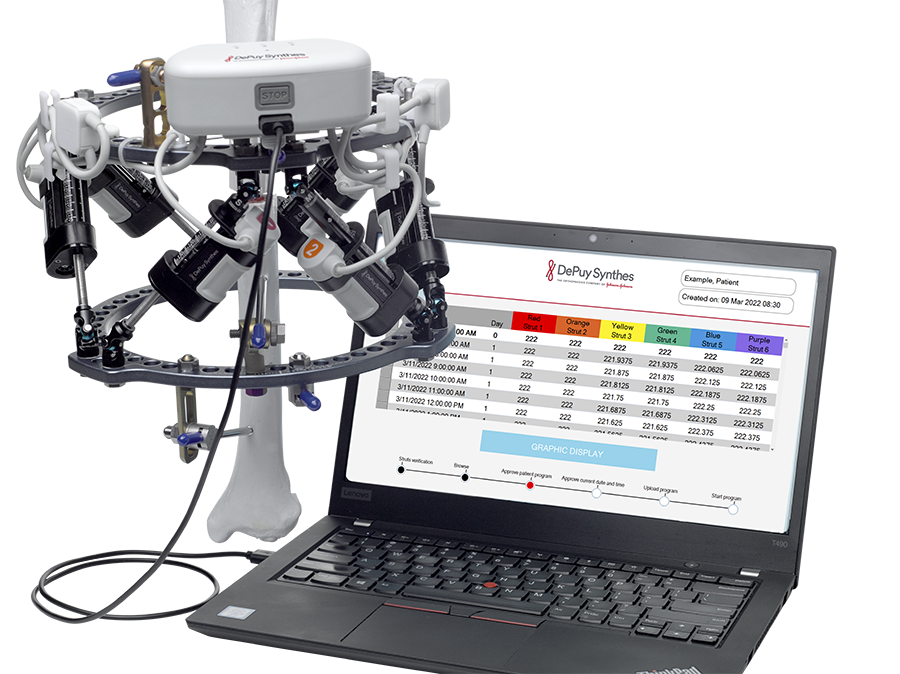

Fig 5: Control system connected with Laptop (offline mode) for system function test and treatment plan upload. Main indications
A. According to the disease/problem:
- Bone transport
- Lengthening
- Rotational corrections
- Multiaxial corrections
- Nonunions (cycle treatment)
B. Conforming to the patient ability:
- Patients with limited manual ability
- Elderly patients
- Noncompliant or only partially compliant patients
- Children
Operating system and computer hardware
MAXFRAME AUTOSTRUT Software is provided on DPS workstations - the surgeon does not need to understand the operating system. There are some requirements for MAXFRAME 3D II.
For more information and the physician user manual, refer to https://www.orthospin.com/
(Case provided by J. Spence Reid, Penn State Health Milton S. Hershey Medical Center, Pennsylvania, USA.)
- 47-year-old woman s/p separate femur and tibia trauma
- Valgus knee with external rotation through femur
- Deformity analysis revealed that the angular deformity was coming from her proximal tibia.
The treatment plan was to remove the femoral intramedullary (IM) nail, to perform a derotational osteotomy of the femur with an internal saw, and then to refix the femur with a new antegrade IM nail.
The tibial deformity was planned to be managed with a MAXFRAME AUTOSTRUT™.

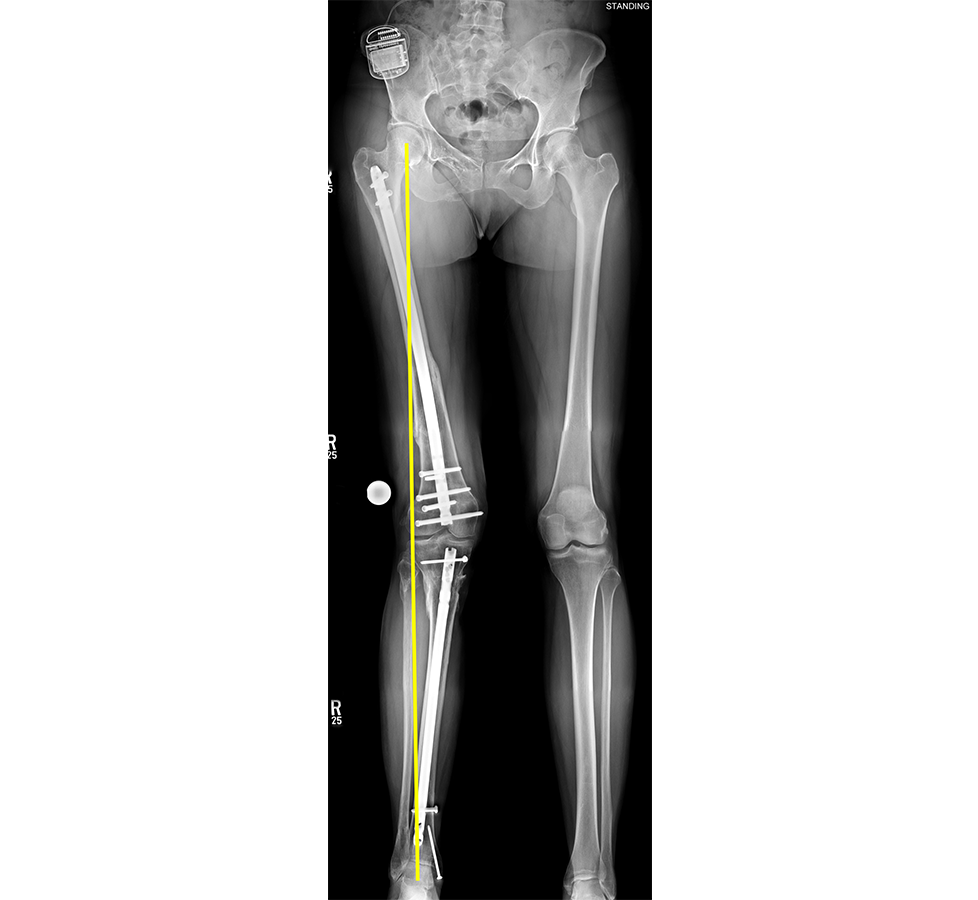

Fig 6: Preoperative standing alignment film.
Fig 7a−b: The use of the intramedullary saw (a) and the new antegrade intramedullary nail (b) in the femur.

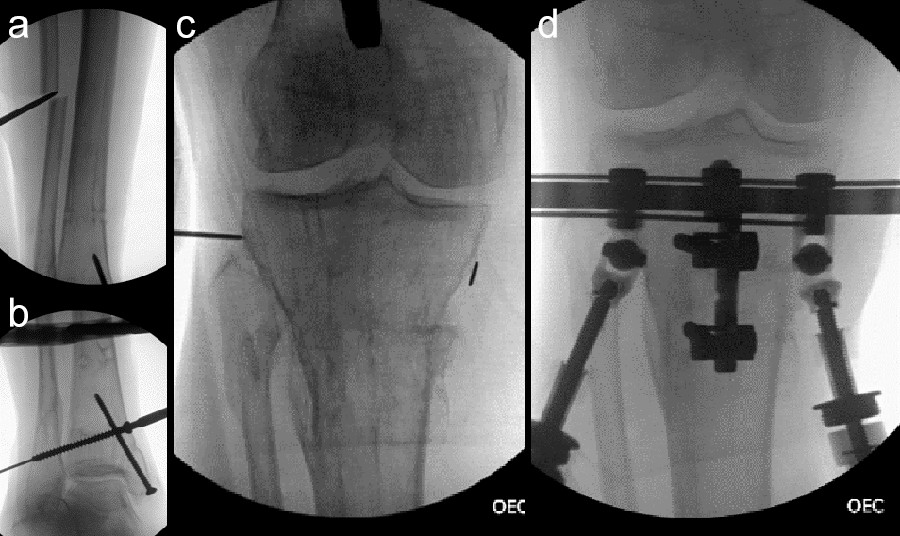

Fig 8a−d: Management of the tibial deformity: Creation of the fibular osteotomy (a); tibia/fibula stabilization using a cannulated screw (b); level of the proximal positioning wire for the first proximal ring; optimally placed in parallel to the tibia plateau (c); the definitive position and fixation of the frame with the proximal part and the master tab in front. Recognize the sagittal fixation with two Schanz screws between struts 1 and 2; this is possible because the rings allow different (non-default) strut attachment points (d).

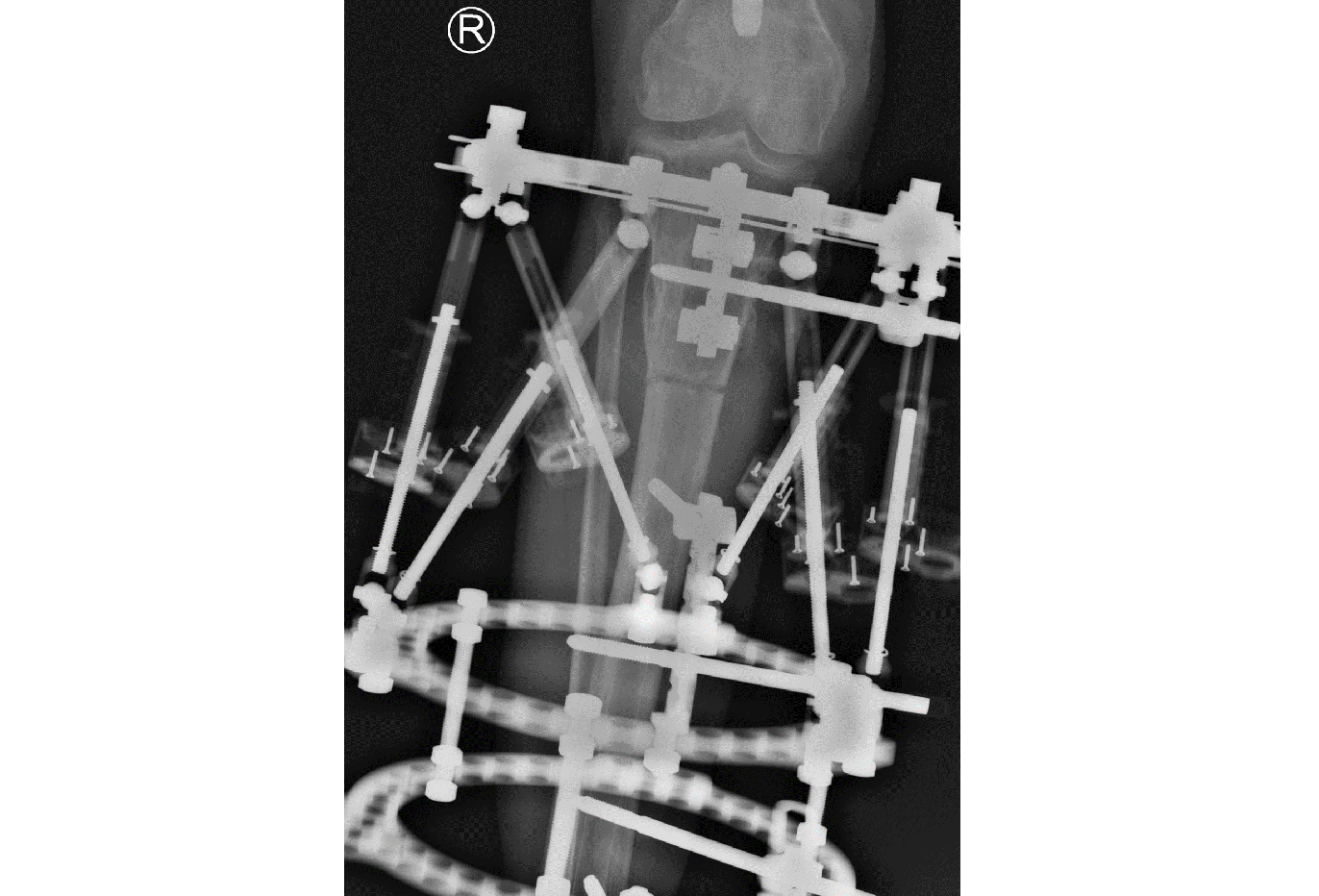

Fig 9: The three-ring MAXFRAME construct at the tibia. The Gigli saw technique was used to create the proximal tibial osteotomy. Additional stability is provided by extra Schanz screws.

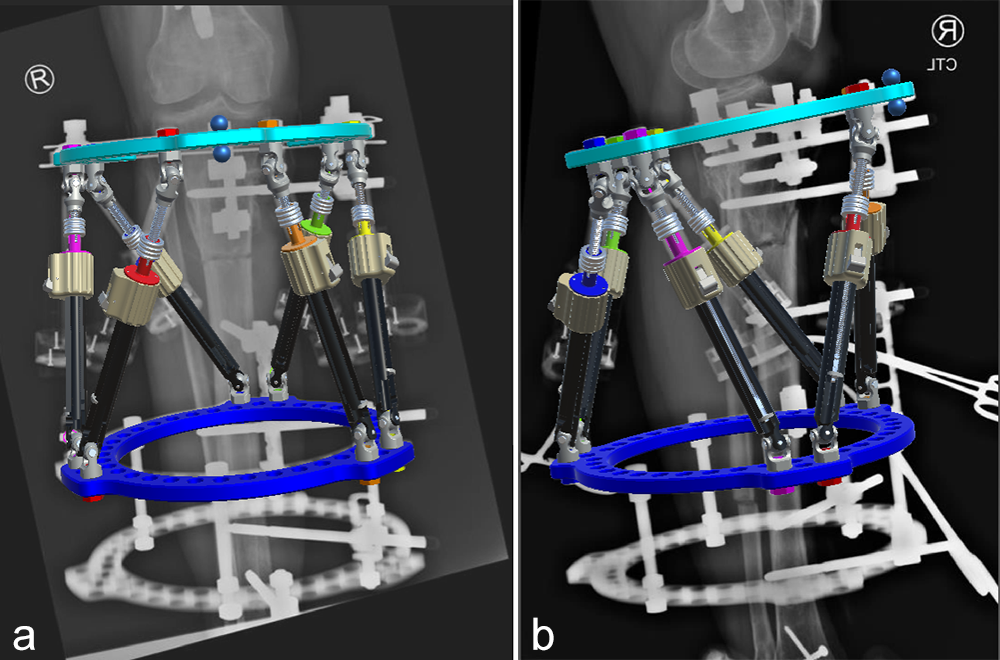

Fig 10a−b: Using the Perspective Frame Matching feature in the planning software, the frame configuration is imported into the software.

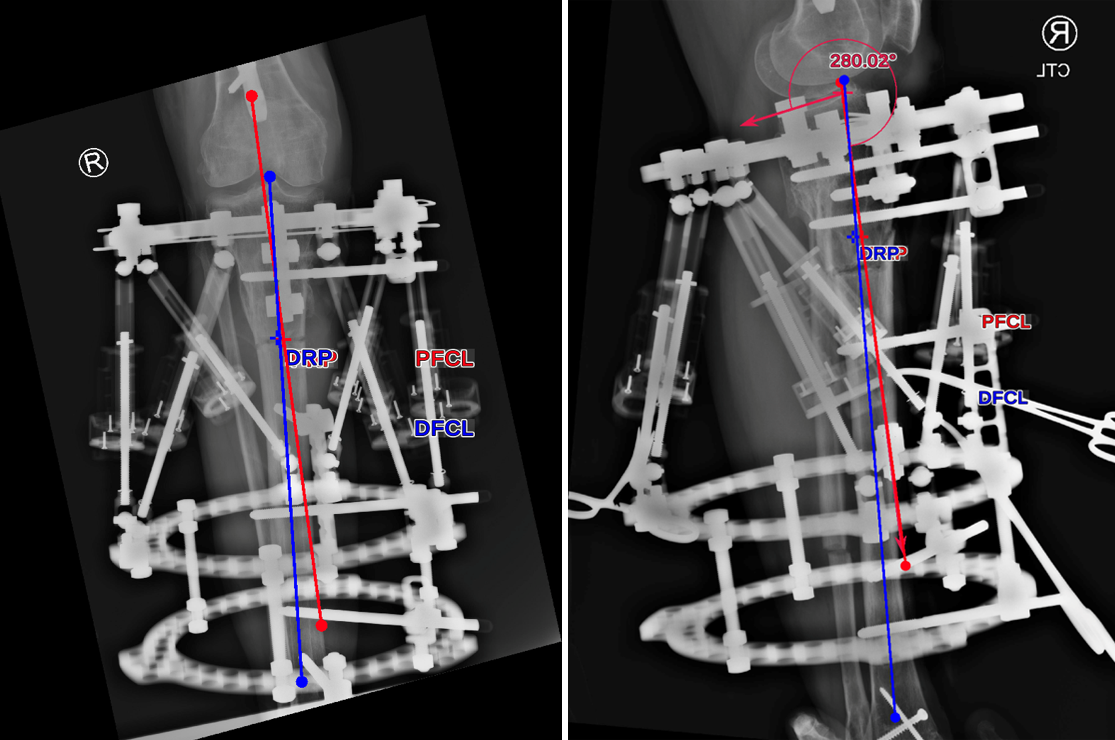

Fig 11: Deformity analysis with the help of the Perspective Frame Matching software. PRP indicates proximal reference point; DRP, distal reference point; PFCL, proximal fragment center line; and DFCL, distal fragment center line.

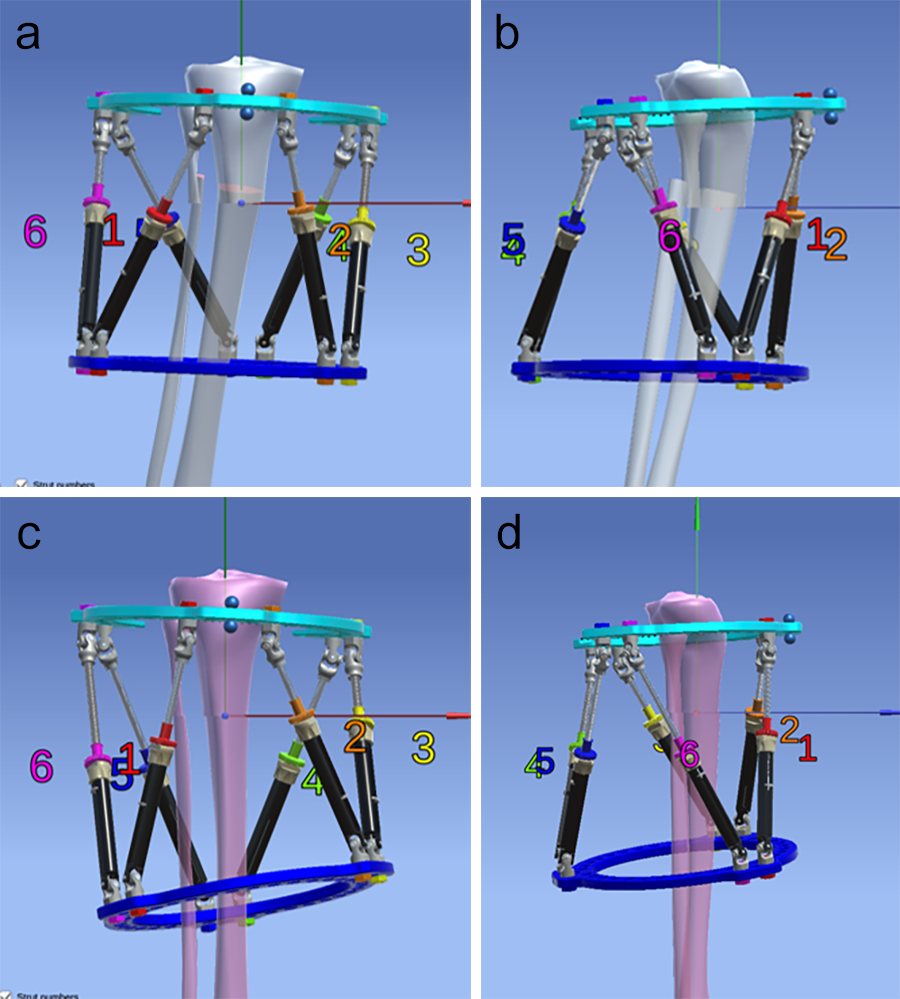

Fig 12a−d: 3D simulation of the MAXFRAME initial configuration and bone position in the AP (a) and lateral view (b). The bone is overlapping at the osteotomy level since a lengthening was planned. MAXFRAME configuration and bone position at the end of the correction in the AP (c) and lateral view (d).

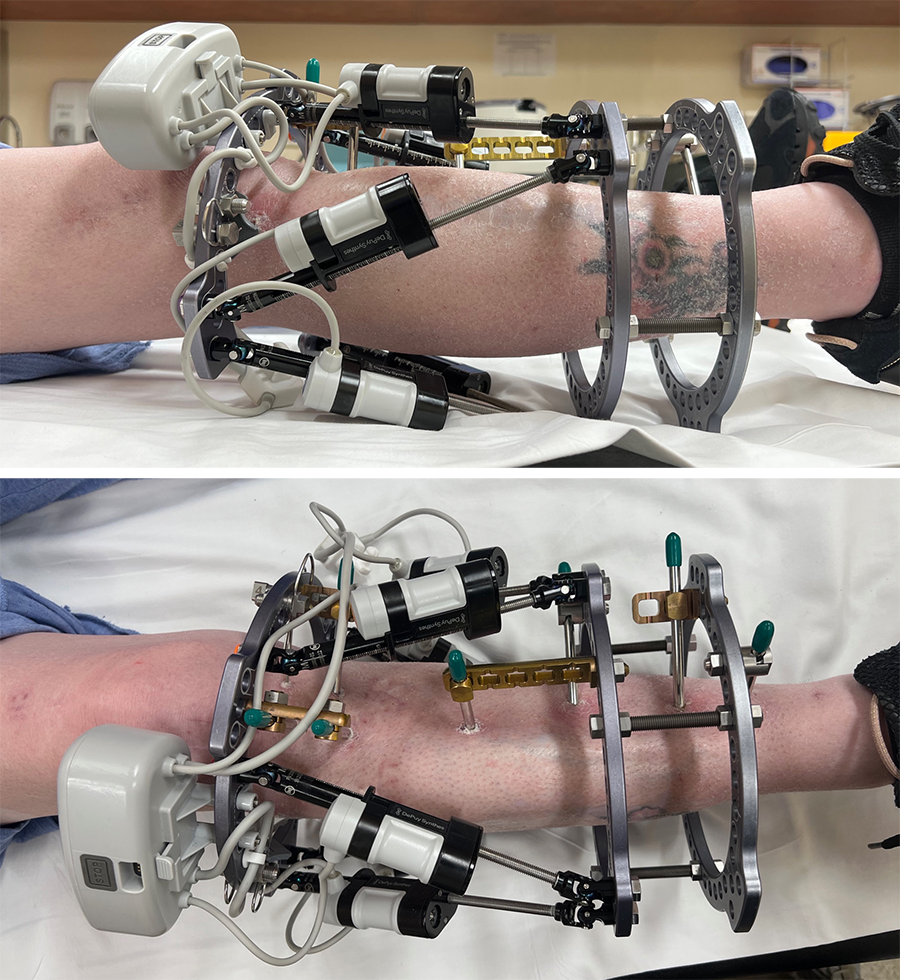

Fig 13: Clinical situation at the end of the correction in different views with the AUTOSTRUT System still mounted to the frame.

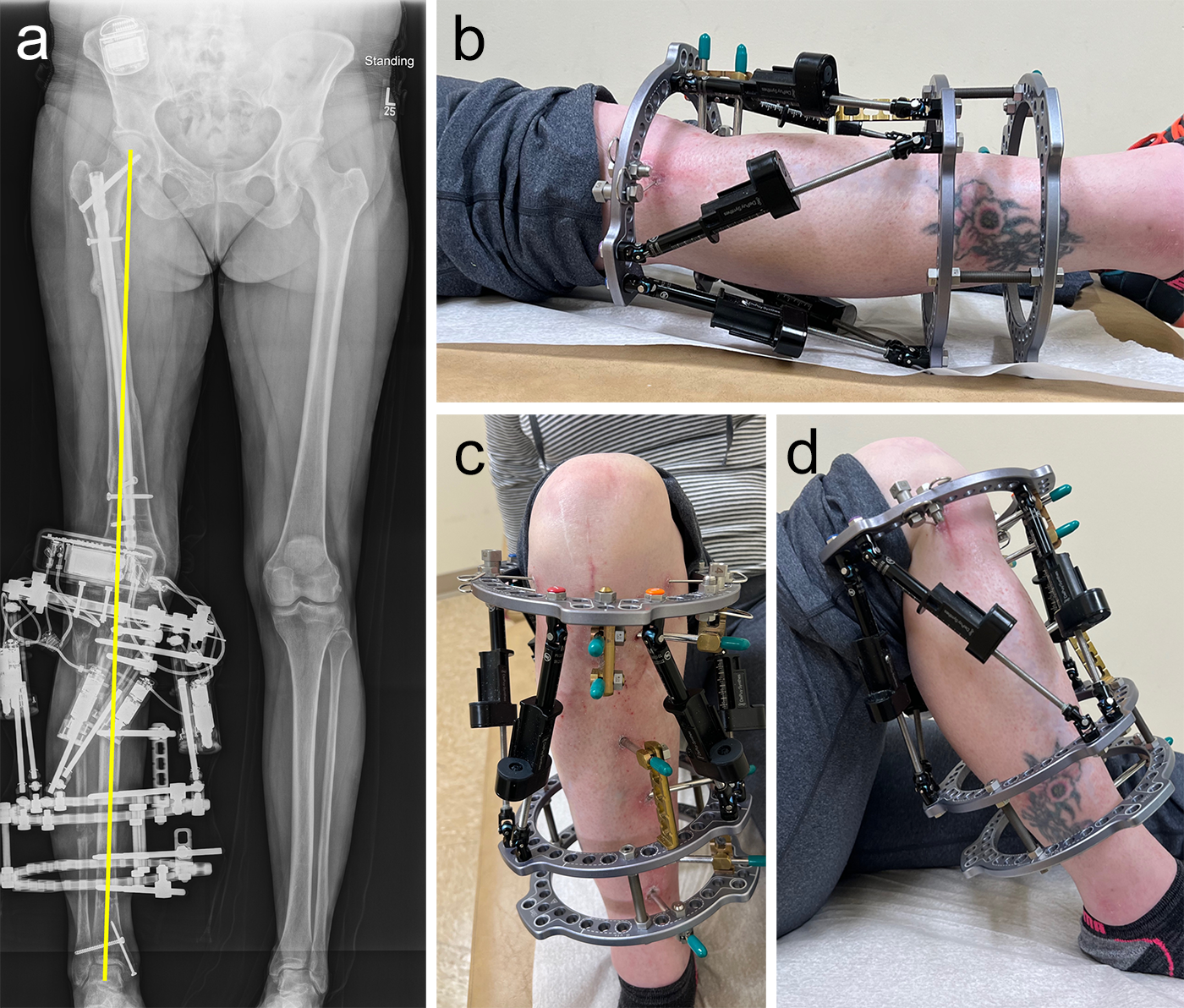

Fig 14a−d: Confirmation of the corrected limb alignment on a standing film (a). After confirmation of the corrected limb axis, the AUTOSTRUT motors and control unit were removed. The frame remains mounted for the remaining phase of bone healing (b−d).

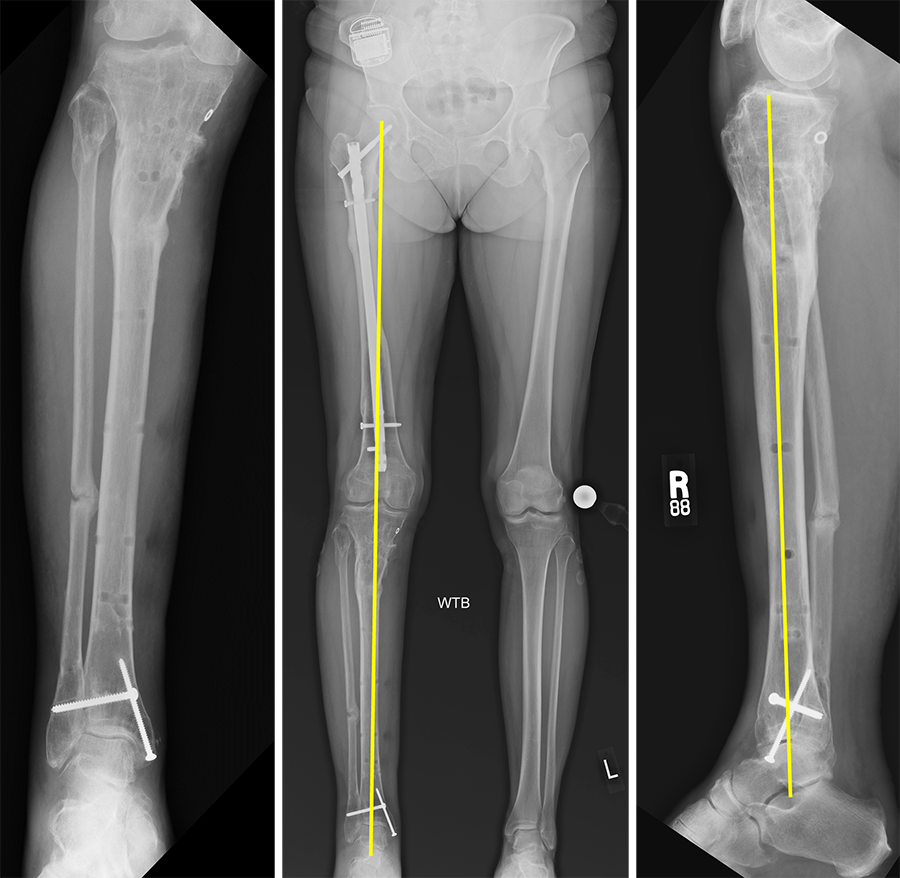

Fig 15: Final radiographs after frame removal. MAXFRAME AUTOSTRUT™
